CTS Home Solar Lifepo4 Stackable Battery Pack 48v 100ah 10kwh 20kwh 30kwh With 5KW Inverter

Name: CTS Home Solar Lifepo4 Stackable Battery Pack 48v 100ah 10kwh 20kwh 30kwh With 5KW Inverter
Brand: CTS energy storage battery
Price: 1250 USD

Buy cheap CTS Home Solar Lifepo4 Stackable Battery Pack 48v 100ah 10kwh 20kwh 30kwh With 5KW Inverter product

Brand Name : CTS energy storage battery

Model Number : LS51300

Certification : ISO,MSDS,UN38.3

Place of Origin : China

MOQ : 2pcs

Price : 1250~2250USD/pcs

Payment Terms : L/C, T/T,paypal,alibaba

Supply Ability : 3000pcs/month

Delivery Time : 20 days

Packaging Details : wooden packing

Model : LS51300

voltage : 51.2V

capacity : 100ah/200ah/300ah/400ah/500ah

application : home solar storage battery

warranty : 5years

battery type : Lifepo4 battery

protection : BMS

payment : TT,Paypal , ALibaba

Contact Now

CTS Home Solar Lifepo4 Stackable Battery Pack 48v 100ah 10kwh 20kwh 30kwh with 5KW inverter

CTS Home Solar Lifepo4 Stackable Battery Pack 48v 100ah 10kwh 20kwh 30kwh With 5KW Inverter

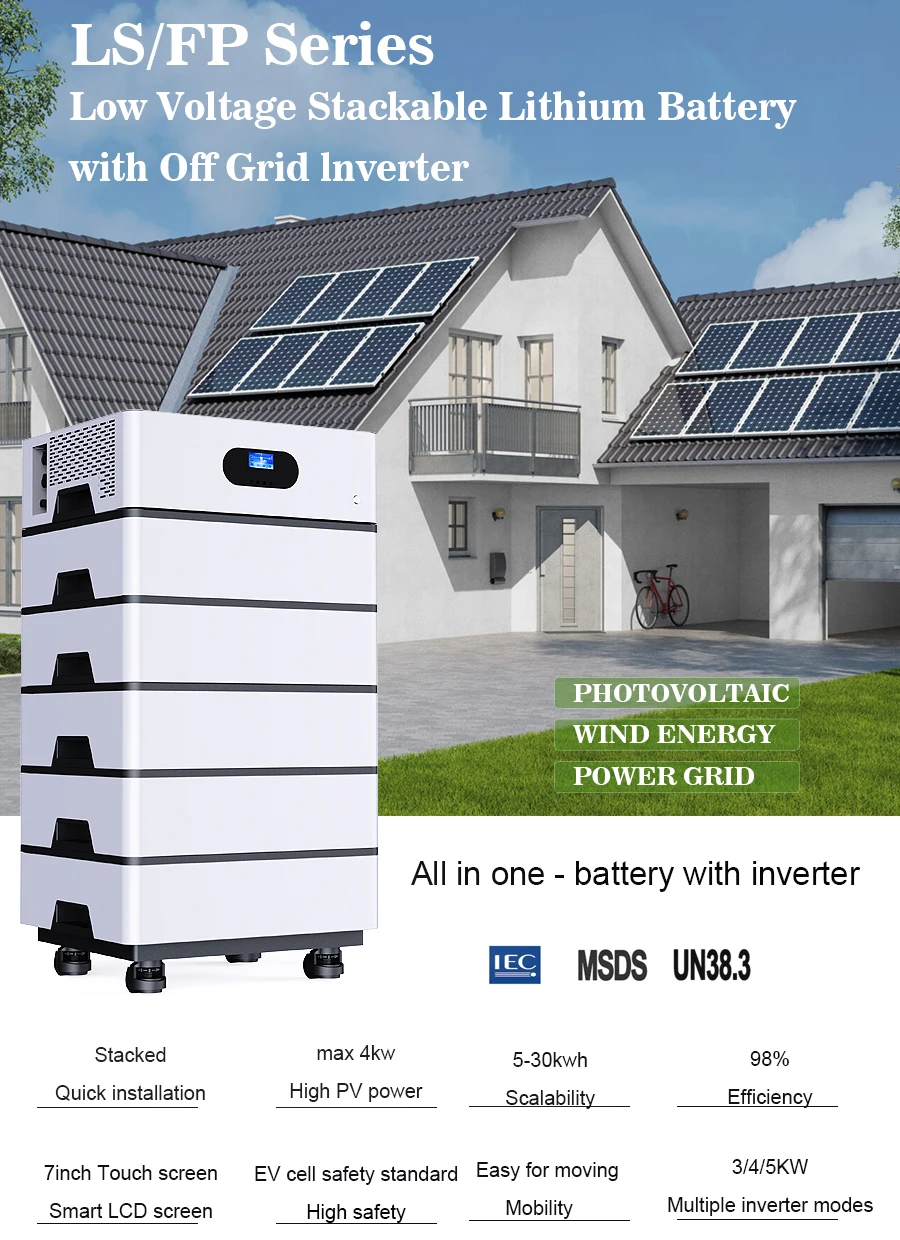

★ A+++ LFP cell and reliable BMS design ★ Module design with flexiable expansion to 30kwh ★ Pulley and rail design ensures easy and quick in stallation of the system ★ Build in MPPT with 99% efficient ★ Low-voltage batteries and inverters provide cost-effective storage systems ★ Operating temperature ranges from -10C to 55C

System specification
Model	LS51100-FP5	LS51200-FP5	LS51300-FP5	LS51400-FP5	LS51500-FP5	LS51600-FP5
Inverter parameter
PV input power	4000W
PV max charge current	80A
Max PV Voltage	145VDC
MPPT voltage range	64~130VDC
Number of Mppt	1
EPS output power	5000W
EPS output voltage	230VAC
EPS output current	21.7A
EPS output frequency	50/60HZ
EPS Transfer Time	≤ 20ms
Waveform	Pure Sine Wave
AC charge current	60A
Battery parameter
Battery Type	LiFePo4	LiFePo4	LiFePo4	LiFePo4	LiFePo4	LiFePo4
Rated voltage	51.2	51.2	51.2	51.2	51.2	51.2
Rated capacity	100AH	200AH	300AH	400AH	500AH	600AH

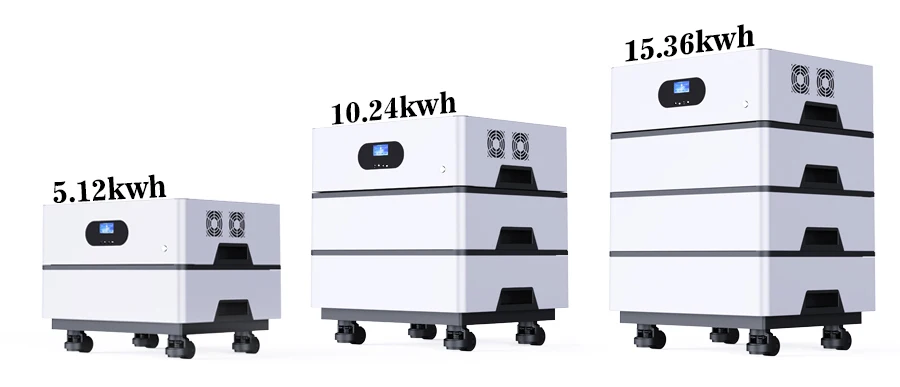

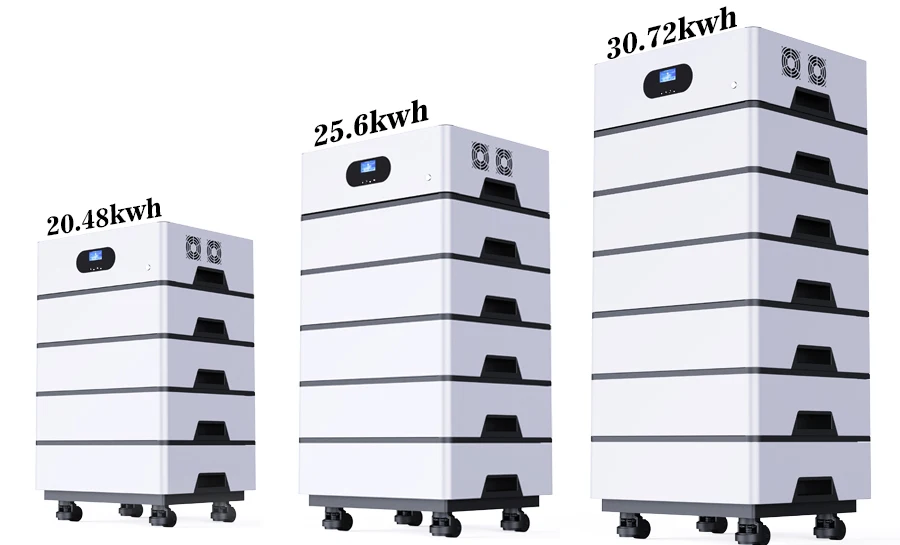

Energy(25°C, 0.5C)	5.12kwh	10.24kwh	15.36kwh	20.48kwh	25.6kwh	30.72kwh
Safety standard	IEC62619, UN38.3, MSDS
System parameter
Display	7 inch touch LCD
Operating temperature	-10°C~60°C
Humidity	15%~85%(No condensation)
Size(WDH)	6404001068mm	6404001336mm	6404001604mm	6404001872mm	6404002140mm	6404002408mm
weight	88kg	136kg	184kg	232kg	280kg	328kg

★Can be stacked

Mobile home enrgy storage battery, A single battery is 5KH, which can be satcked up to 30KH,Effectively respond tosudden power outages and planned power restrictions

Data Monitoring Voltage, Current, Tmperature, etc. Safety Protection Overcharge, Overdischarge, Overcurrent, Overtemperature, Online alarm, etc. Data Interaction CAN, RS485,

Smart Switch

Optional Off-grid/on-grid inverter Integrateddesign,Off-grid operation supporting emergencypower supply,switchable at any time, multiple inverter modes,3/4/5KW

Residential Energy Storage System

The intelligent small energy storage system is combined with advanced LiFe-PO4 lithium batteries, hybrid inverters, energy management systems, and photovoltaic module systems, which is suitable for household energy storage, farms, and other applications.

Product Tags:

Lifepo4 Stackable Battery Pack

Stackable Battery Pack 48v 100ah

5KW Inverter Lifepo4 Battery Pack
